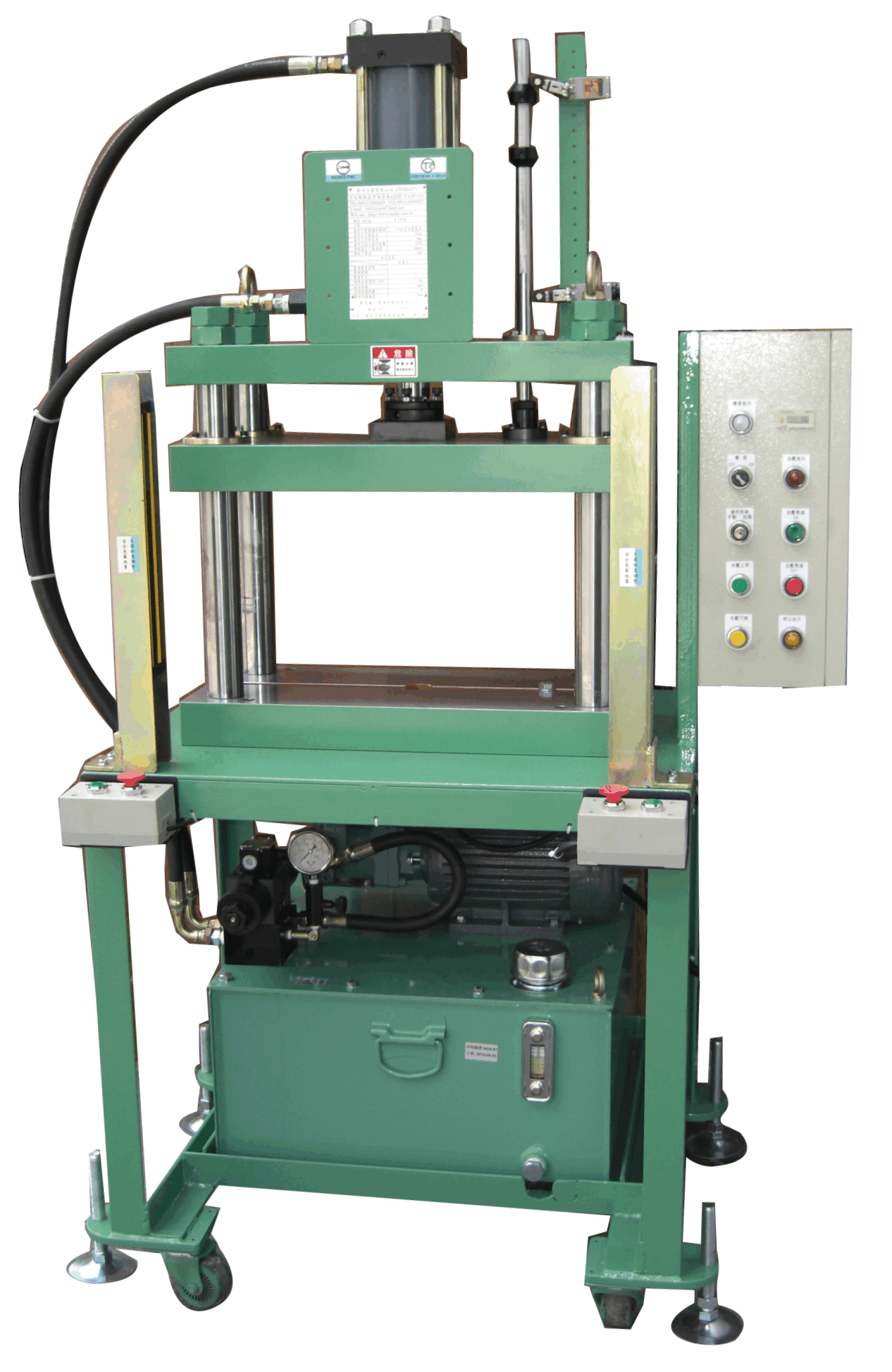

Hydraulic Press Machine
- PCMS
|
Home
Picture |
|
|
|
How to order |
|
PCMS
|
-
|
5T
|
-
|
200
|
-
|
220
|
-
|
|
-
|
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
(1)
|
|
(2)
|
|
(3)
|
|
(4)
|
|
(5)
|
|
(6)
|
| (1) |
Series |
PCMS…Hydraulic Press
Machine
|
| (2) |
Output(max.) |
3T, 5T, 10T, 15T, 20T(Tons),Standard |
| (3) |
Total travel |
200mm(Standard)
150,250,300,350,400mm(By order) |
| (4) |
Voltage |
220…AC220V,
380…AC380V |
| (5) |
Cylinder Type |
Space...Standard
WA...Stroke adjustable 50mm(By order) |
| (6) |
Optics Sensor
(option) |
Space...No(Standard)
V1...Single-point type
V4...Four-mirror type |
|
|

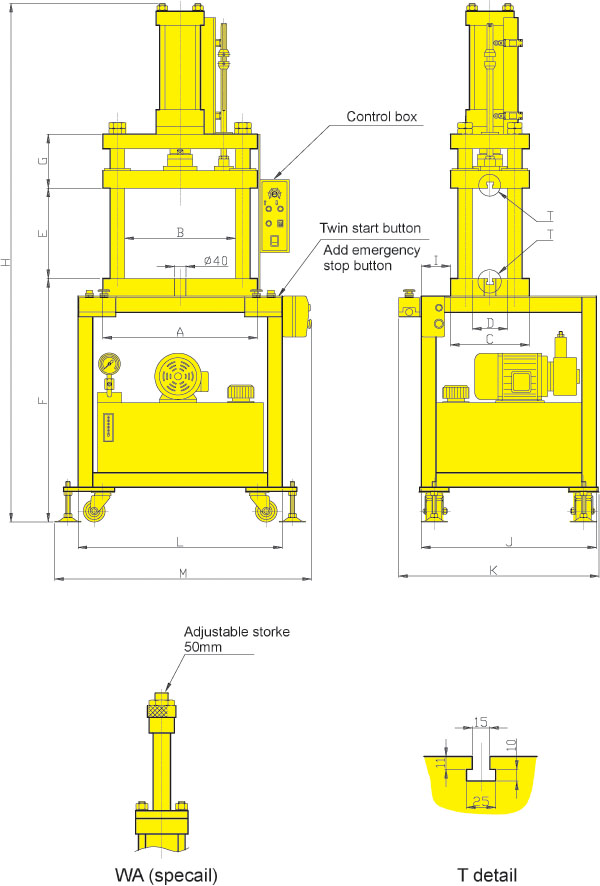

Dimensions |
|
Note1：
Working height & table
size & pillar height & stroke can ordered by customer.
Option：
1.Two level speed
hydraulic system.
2.Counter.
3.Low noise design. |
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
Weight(kg)
|
|
PCMS-3T
|
465
|
360
|
250
|
145
|
310
|
825
|
155
|
1688
|
100
|
600
|
687
|
600
|
780
|
330
|
|
PCMS-5T
|
465
|
360
|
250
|
145
|
310
|
825
|
155
|
1705
|
100
|
600
|
687
|
600
|
780
|
340
|
|
PCMS-10T
|
530
|
380
|
270
|
120
|
310
|
835
|
175
|
1760
|
100
|
600
|
687
|
700
|
900
|
450
|
|
PCMS-15T
|
530
|
380
|
270
|
120
|
310
|
840
|
185
|
1780
|
100
|
600
|
687
|
700
|
900
|
490
|
|
PCMS-20T
|
530
|
380
|
300
|
150
|
310
|
845
|
195
|
1830
|
100
|
600
|
687
|
700
|
900
|
570
|
|
