C-Model Hydro Pneu Press - PHB



Home


How to order
PHB
-
3T
-
120
-
20
-
220
-
(1)
(2)
(3)
(4)
(5)
(6)

(1) Series
PHB…C-Model Hydro Pneu Press
(2) Output(max.) 3T, 5T(Tons)
(3) Total travel 120mm(Standard)
100,150,200(By order)
(4) High thrusting force travel 3T...10mm、20mm
5T...10mm、12mm
(5) Voltage 110…AC110V, 220…AC220V
(6) Optics Sensor
(option)
Space...No(Standard)
V1...Single-point type
V4...Four-mirror type

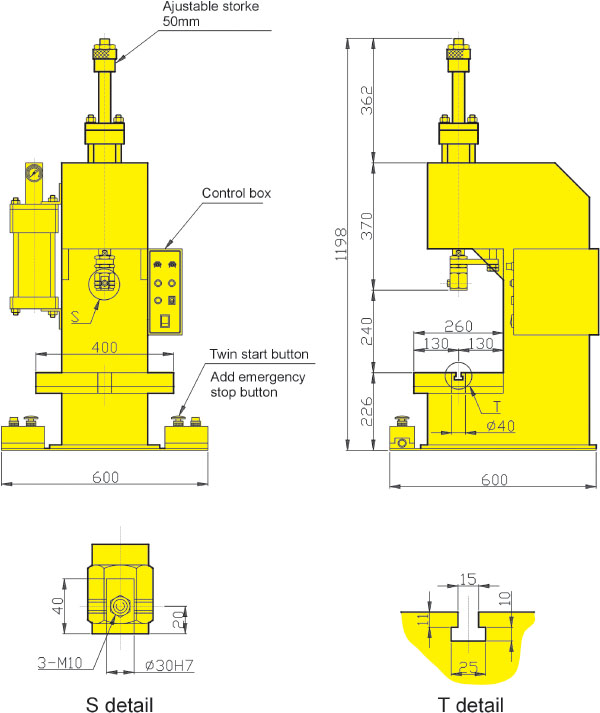

Dimensions



Weight(kg)
3T
5T
250
260


Note1:
Working height & table size & pillar height & stroke can ordered by customer.
Note2:
Two level speed, the speed is able to adjust.
