C-Model Hydraulic Press
- PHC
|
Home

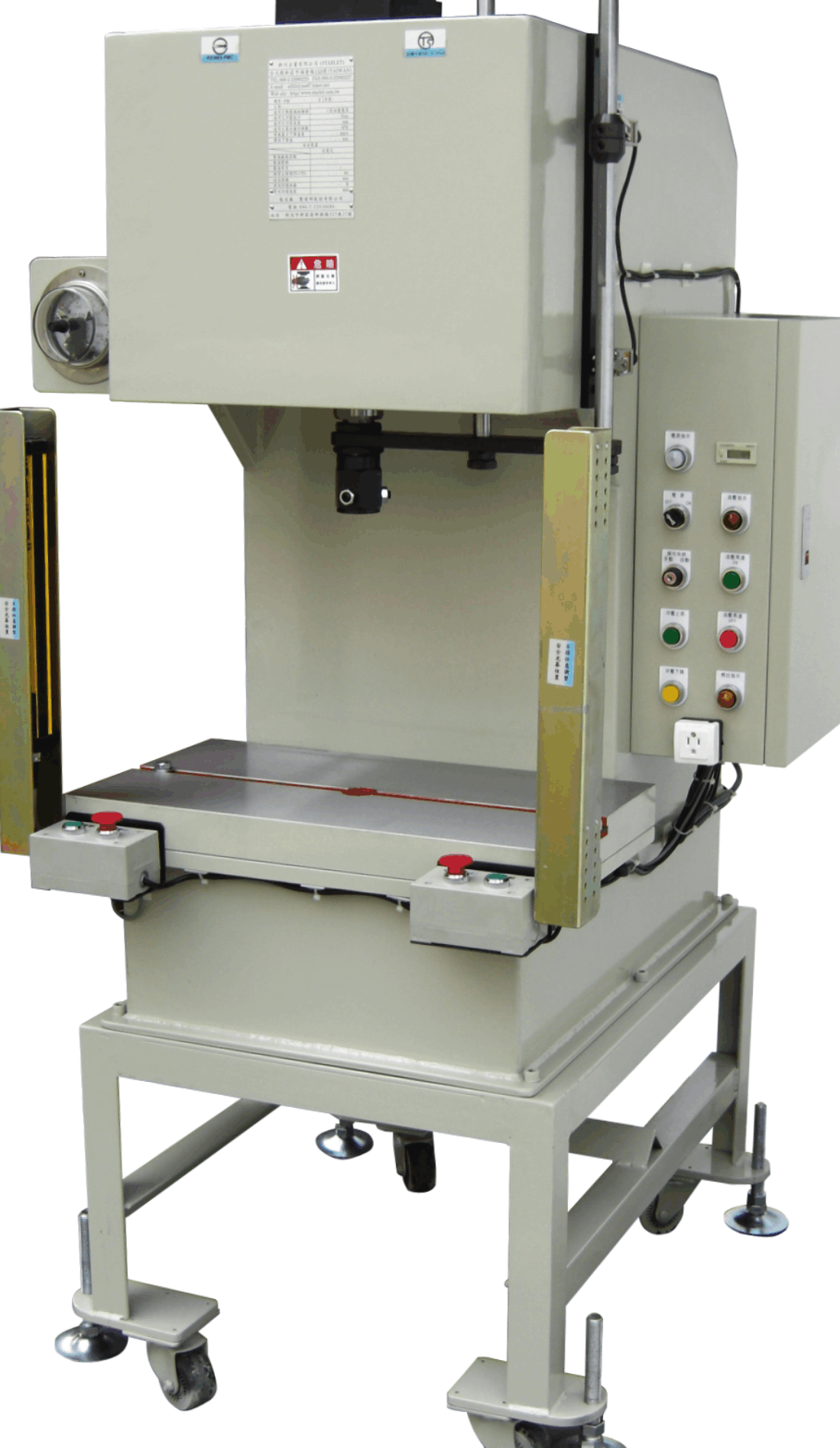

Picture |
|
|
|
How to order |
|
PHC
|
-
|
5T
|
-
|
200
|
-
|
220
|
-
|
|
-
|
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
(1)
|
|
(2)
|
|
(3)
|
|
(4)
|
|
(5)
|
|
(6)
|
| (1) |
Series |
PHC…C-Model Hydraulic
Press
|
| (2) |
Output(max.) |
3T, 5T, 10T, 15T, 20T, 30T, 40T(Tons) |
| (3) |
Total travel |
200mm(Standard)
150,250,300,350,400mm(By order) |
| (4) |
Voltage |
220…AC220V,
380…AC380V |
| (5) |
Cylinder Type |
Space...Standard
WA...Stroke adjustable 50mm(By order) |
| (6) |
Optics Sensor
(option) |
Space...No(Standard)
V1...Single-point type
V4...Four-mirror type |
|
|

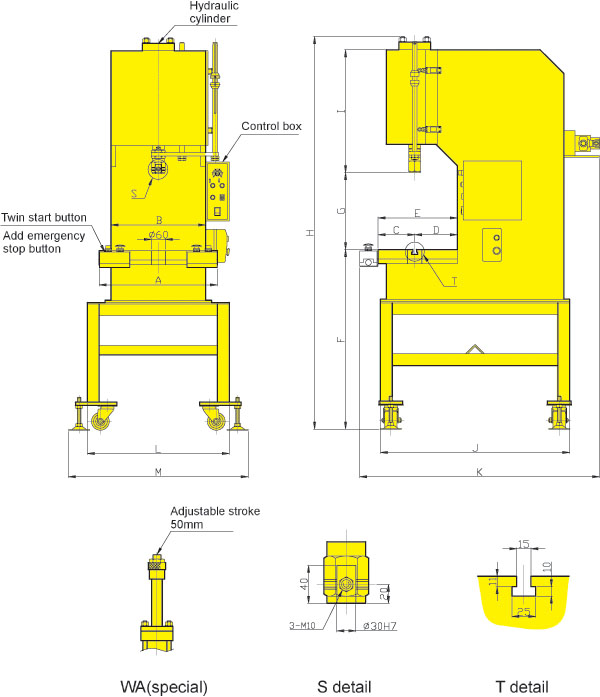

Dimensions |
|
Note1：
Working height & table
size & pillar height & stroke can ordered by customer.
Option：
1.Two level speed
hydraulic system.
2.Counter.
3.Low noise design. |
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
Weight(kg)
|
|
PHC-3T
|
500
|
400
|
155
|
180
|
335
|
760
|
325
|
1650
|
520
|
800
|
1050
|
600
|
760
|
450
|
|
PHC-5T
|
500
|
400
|
155
|
180
|
335
|
760
|
325
|
1660
|
520
|
800
|
1050
|
600
|
760
|
470
|
|
PHC-10T
|
600
|
500
|
155
|
180
|
335
|
770
|
325
|
1745
|
520
|
800
|
1050
|
600
|
760
|
610
|
|
PHC-15T
|
600
|
500
|
155
|
180
|
335
|
770
|
325
|
1780
|
570
|
800
|
1050
|
600
|
760
|
630
|
|
PHC-20T
|
600
|
500
|
155
|
180
|
335
|
770
|
325
|
1810
|
570
|
800
|
1050
|
600
|
760
|
700
|
| PHC-30T |
600
|
500
|
170
|
180
|
350
|
770
|
325
|
1840
|
670
|
900
|
1150
|
600
|
760
|
900
|
| PHC-40T |
600
|
500
|
170
|
180
|
350
|
770
|
325
|
1860
|
670
|
900
|
1150
|
600
|
760
|
980
|
|
