Mini C-Model Hydraulic
Press Machine - PHD
|
Home

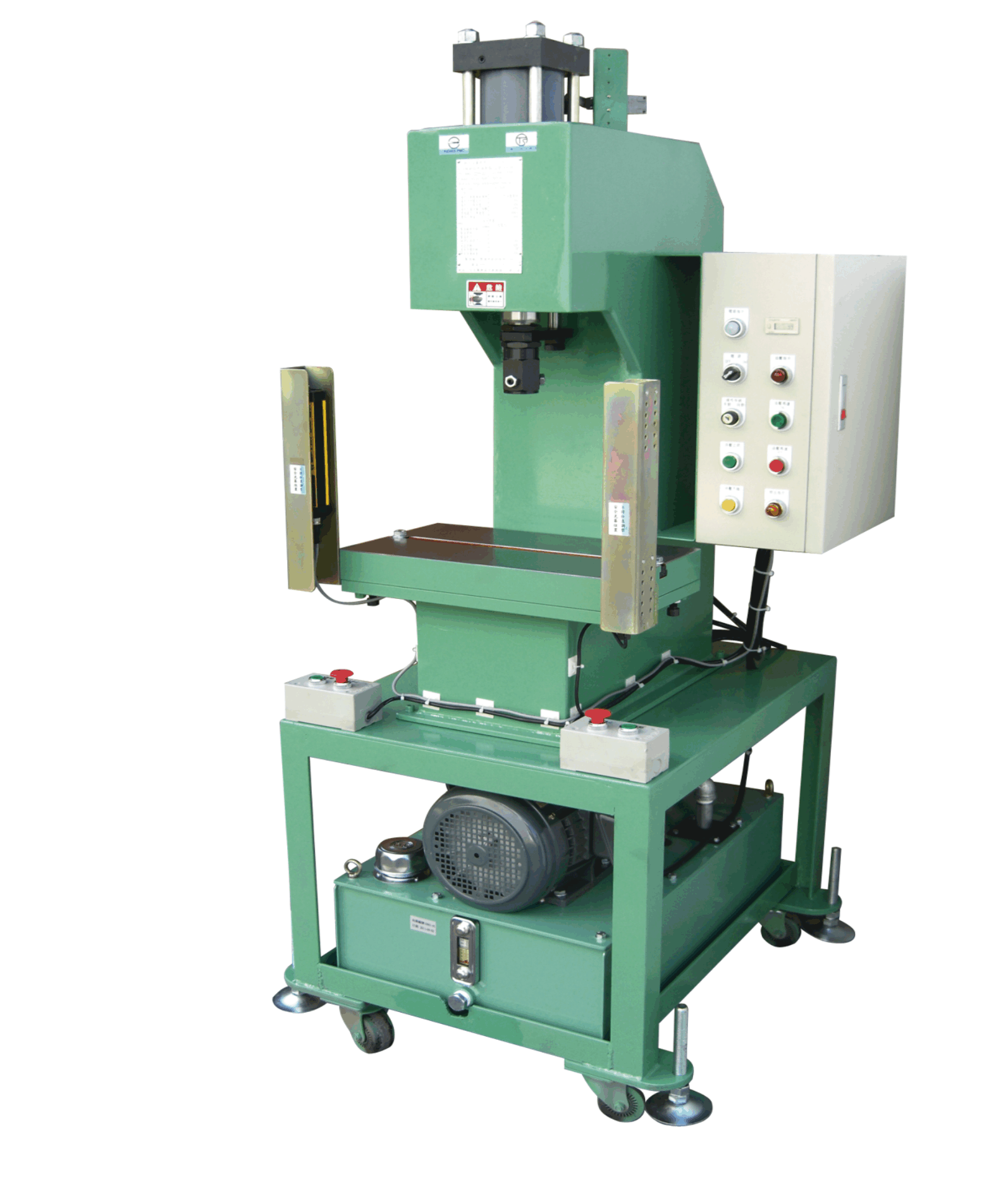

Picture |
|
|
|
How to order |
|
PHD
|
-
|
5T
|
-
|
150
|
-
|
220
|
-
|
|
-
|
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
(1)
|
|
(2)
|
|
(3)
|
|
(4)
|
|
(5)
|
|
(6)
|
| (1) |
Series |
PHD…Mini C-Model
Hydraulic Press Machine
|
| (2) |
Output(max.) |
1T, 3T, 5T, 8T, 10T(Tons) |
| (3) |
Total travel |
150mm(Standard)
100,125,175,200,250mm(By order) |
| (4) |
Voltage |
220…AC220V,
380…AC380V |
| (5) |
cylinder type |
Space...Standard
WA...Stroke adjustable 50mm(By order) |
| (6) |
Optics Sensor
(option) |
Space...No(Standard)
V1...Single-point type
V4...Four-mirror type |
|
|

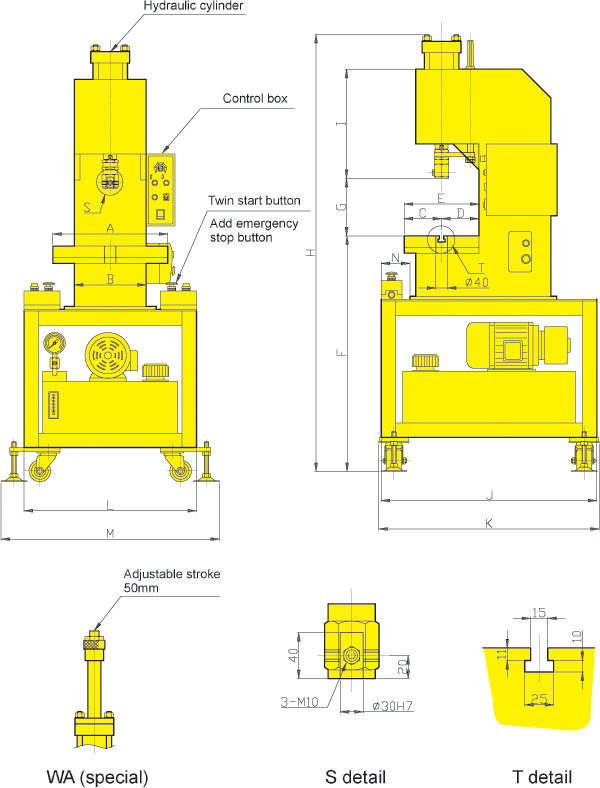

Dimensions |
|
Note1：
Working height & table
size & pillar height & stroke can ordered by customer.
Option：
1.Two level speed
hydraulic system.
2.Counter.
3.Low noise design. |
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
N |
Weight(kg)
|
|
PHD-1T
|
400
|
250
|
130
|
130
|
260
|
755
|
240
|
1440
|
320
|
750
|
767
|
600
|
760
|
100
|
280
|
|
PHD-3T
|
450
|
250
|
130
|
130
|
260
|
820
|
250
|
1540
|
380
|
750
|
767
|
600
|
760
|
100
|
380
|
|
PHD-5T
|
450
|
250
|
130
|
130
|
260
|
820
|
250
|
1561
|
380
|
750
|
767
|
600
|
760
|
100
|
390
|
|
PHD-8T
|
450
|
250
|
130
|
130
|
260
|
825
|
250
|
1571
|
380
|
750
|
767
|
600
|
760
|
100
|
450
|
|
PHD-10T
|
450
|
250
|
130
|
130
|
260
|
880
|
250
|
1581
|
380
|
750
|
767
|
600
|
760
|
100
|
500
|
|
