Picture |
|
|
|
How to order |
|
PHF
|
-
|
3T
|
-
|
120
|
-
|
20
|
-
|
220
|
-
|
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
(1)
|
|
(2)
|
|
(3)
|
|
(4)
|
|
(5)
|
|
(6)
|
| (1) |
Series |
PHF…Hydro Pneu Press
|
| (2) |
Output(max.) |
3T, 5T(Tons) |
| (3) |
Total travel |
120mm(Standard)
100,150,200(By order) |
| (4) |
High thrusting force travel |
5,10,15,20mm |
| (5) |
Voltage |
110…AC110V,
220…AC220V |
| (6) |
Optics Sensor
(option) |
Space...No(Standard)
V1...Single-point type
V4...Four-mirror type |
|
|

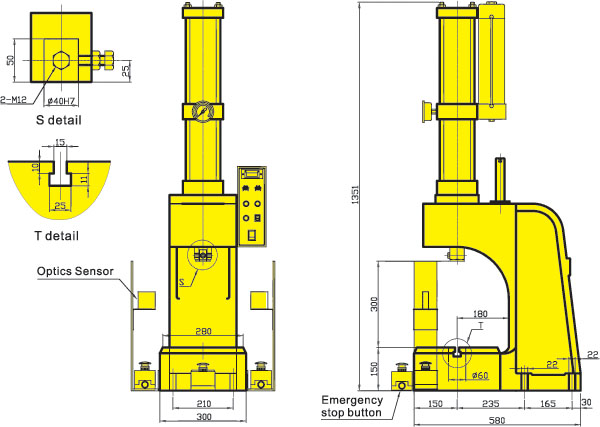

Dimensions |
|
Note1：
Two level speed, the speed
is able to adjust. |
|
Model
|
3T
|
5T
|
|
Weight(kg)
|
205
|
213
|
|
