C-Model Hydro Pneu Press
- PHG
|
Home

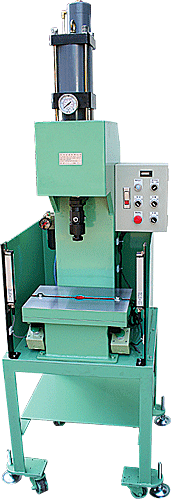

Picture |
|
|
|
How to order |
|
PHG
|
-
|
3T
|
-
|
120
|
-
|
15
|
-
|
220
|
-
|
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
(1)
|
|
(2)
|
|
(3)
|
|
(4)
|
|
(5)
|
|
(6)
|
| (1) |
Series |
PHG…C-Model Hydro
Pneu Press
|
| (2) |
Output(max.) |
1T, 2T, 3T, 5T, 8T(Tons) |
| (3) |
Total travel |
120mm(Standard)
75,100,150(By order) |
| (4) |
High thrusting force travel |
12mm(Standard)
10mm,15mm,20mm(By order) |
| (5) |
Voltage |
110…AC110V,
220…AC220V |
| (6) |
Optics Sensor
(option) |
Space...No(Standard)
V1...Single-point type
V4...Four-mirror type |
|
|

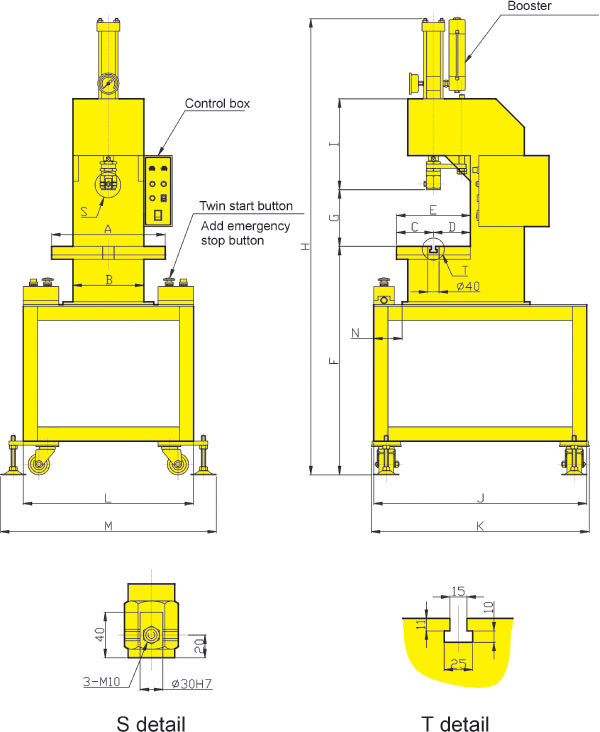

Dimensions |
|
Note1：
Working height & table
size & pillar height & stroke can ordered by customer.
Note2：
Two level speed, the speed
is able to adjust. |
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
N |
Weight(kg)
|
|
PHG-1T
|
400
|
250
|
130
|
130
|
260
|
755
|
260
|
1600
|
320
|
750
|
767
|
600
|
760
|
100
|
200
|
|
PHG-2T
|
400
|
250
|
130
|
130
|
260
|
755
|
260
|
1600
|
320
|
750
|
767
|
600
|
760
|
100
|
210
|
|
PHG-3T
|
400
|
250
|
130
|
130
|
260
|
820
|
260
|
1840
|
380
|
750
|
767
|
600
|
760
|
100
|
310
|
|
PHG-5T
|
400
|
250
|
130
|
130
|
260
|
820
|
260
|
1840
|
380
|
750
|
767
|
600
|
760
|
100
|
320
|
|
PHG-8T
|
400
|
250
|
130
|
130
|
260
|
830
|
260
|
1940
|
380
|
750
|
767
|
600
|
760
|
100
|
400
|
|
