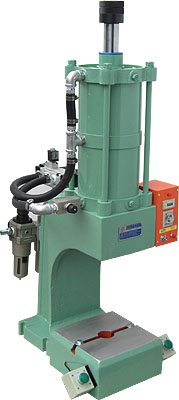

Pneumatic Press Machine
- PNP
|
Home
Picture |
|
|
|
How to order |
|
PNP
|
-
|
1500
|
-
|
110
|
-
|
R
|
-
|
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
(1)
|
|
(2)
|
|
(3)
|
|
(4)
|
|
(5)
|
| (1) |
Series |
PNP…Pneumatic Press Machine(Standard type)
APD…Triple-Board Pneumatic Press Machine(by order)
|
| (2) |
Output(max.) |
1500… 1500kg
2000… 2000kg
3000… 3000kg
4000… 4000kg |
| (3) |
Voltage |
110…110V
220…220V |
| (4) |
Operating method |
R…Dual pushbuttom(Standard type)
F...Foot switch(option) |
| (5) |
Optics Sensor
(option) |
Space...No(Standard)
V1...Single-point type
V4...Four-mirror type |
|

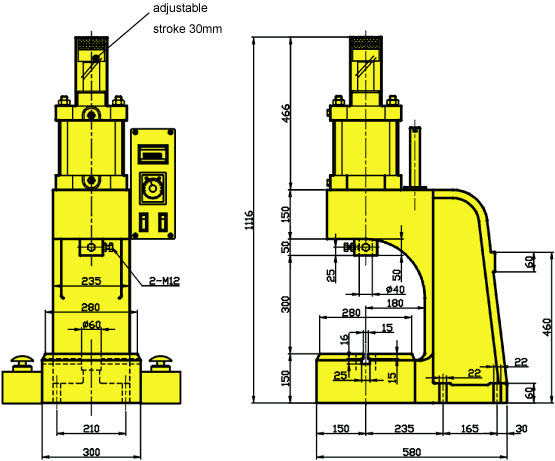

| PNP-1500
& PNP-2000 |
|
Model
|
Bore
|
Stroke
|
Weight
|
Worktable size
|
Theoretical output
(at 7kg/cm2)
|
|
1500
|
φ180
|
100
|
200kg
|
280X280
|
1780kg
|
|
2000
|
φ200
|
100
|
210kg
|
280X280
|
2190kg
|
|

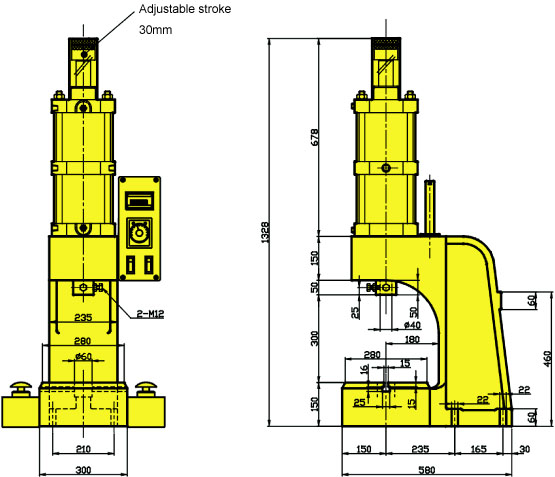

| PNP-3000
& PNP-4000 |
|
Model
|
Bore
|
Stroke
|
Weight
|
Worktable size
|
Theoretical output
(at 7kg/cm2)
|
|
3000
|
φ180(2 Layers)
|
100
|
230kg
|
280X280
|
3300kg
|
|
4000
|
φ200(2 Layers)
|
100
|
245kg
|
280X280
|
3900kg
|
|
