Pneumatic & Hydraulic Booster
Press Machine - PRD
|
Home

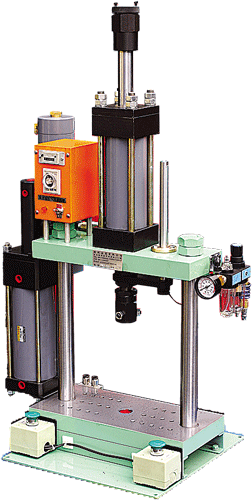

Picture |
|
|
|
How to order |
|
PRD
|
-
|
3T
|
-
|
120
|
-
|
220
|
-
|
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
(1)
|
|
(2)
|
|
(3)
|
|
(4)
|
|
(5)
|
| (1) |
Series |
PRD…Pneumatic &
Hydraulic Booster Press Machine
|
| (2) |
Output(max.) |
3T…3Tons, 5T…
5Tons |
|
(3)
|
Total travel
|
120mm(Standard)
75,100,150,175,200mm(By order)
|
| (4) |
Voltage |
110…110V
220…220V |
| (5) |
Optics Sensor
(option) |
Space...No(Standard)
V1...Single-point type
V4...Four-mirror type |
|
|

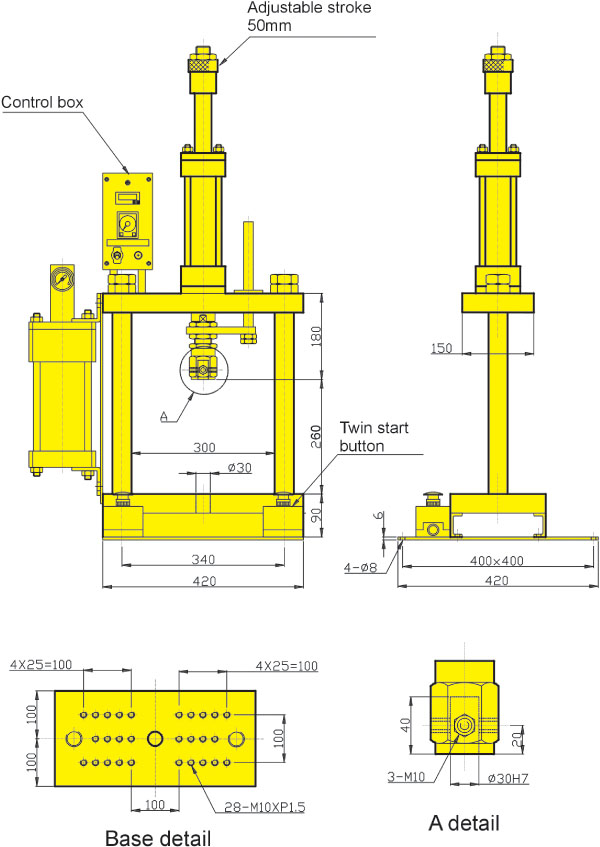

Dimensions |
Note1：
Working height & table
size & pillar height & stroke can ordered by customer.
Note2：
Two level speed, the speed
is able to adjust. |
|
