Pneumatic Press Machine
- PNP
|
Home
Picture |
|
|
|
How to order |
|
PNP
|
-
|
500
|
-
|
110
|
-
|
R
|
-
|
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
(1)
|
|
(2)
|
|
(3)
|
|
(4)
|
|
(5)
|
| (1) |
Series |
PNP…Pneumatic Press Machine(Standard type)
APD…Triple-Board Pneumatic Press Machine(by order)
|
| (2) |
Output(max.) |
200… 200kg
300… 300kg
500… 500kg
800… 800kg
1000… 1000kg
1500… 1500kg
2000… 2000kg
3000… 3000kg
4000… 4000kg |
| (3) |
Voltage |
110…110V
220…220V |
| (4) |
Operating method |
R…Dual pushbuttom(Standard type)
F...Foot switch(option) |
| (5) |
Optics Sensor
(option) |
Space...No(Standard)
V1...Single-point type
V4...Four-mirror type |
|

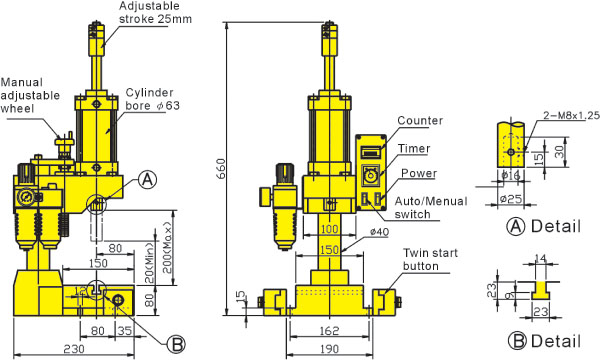

| PNP-200 |
|
Model
|
Bore
|
stroke
|
Weight
|
Worktable size
|
Theoretical output
(at 5kg/cm2)
|
|
200R
|
φ63
|
75
|
39kg
|
150X150
|
140kg
|
|

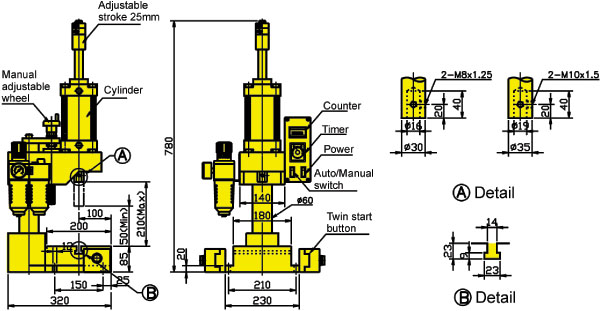

| PNP-300
& PNP-500 |
|
Model
|
Bore
|
Stroke
|
Weight
|
Worktable size
|
Theoretical output
(at 5kg/cm2)
|
|
300R
|
φ80
|
100
|
74kg
|
180X200
|
227kg
|
|
500R
|
φ100
|
100
|
77kg
|
180X200
|
368kg
|
|

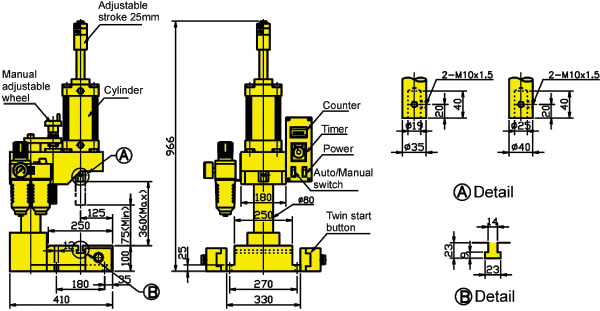

| PNP-800
& PNP-1000 |
|
Model
|
Bore
|
Stroke
|
Weight
|
Worktable size
|
Theoretical output
(at 5kg/cm2)
|
|
800R
|
φ125
|
100
|
140kg
|
250X250
|
563kg
|
|
1000R
|
φ150
|
100
|
145kg
|
250X250
|
838kg
|
|
