AJC Air Jip Cylinder

‧Bore:Ø12-Ø100mm ‧Pmax:10kg/c㎡

NOTE:Sizes marked with◎should add 5mm to cylinder body length

1	Series	AJC
2	Mounting type	SD	Single end rod type
		SW	Double end rod type
		SDM	Single end rod with magnet
		SWM	Double end rod with magnet
3	Bore of cylinder	Ø12. Ø16. Ø20. Ø25. Ø32. Ø40, Ø50. Ø63. Ø80. Ø100

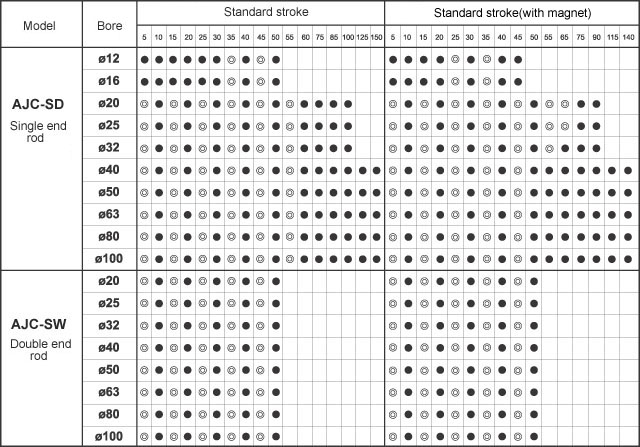

4	Standard stroke	Please refer to the stroke specification
5	Rod end type	Female thread N Male threadW
6	Sensor switch	1 pc of S1 2 pcs of S2

		SD	SW
