AJC Air Jip Cylinder ‧Bore:Ø12-Ø100mm ‧Pmax:10kg/c㎡



This pneumatic clam cylinder is also known as compact cylinder . The cylinder barrel is light . Especially , it is fit to install in a place where its space is narrowed.



All of the spare parts with standardized specification that we provided are processed by CNC lathe . The sizes of the spare parts are unified for replacing easily .


The cylinder barrel is made of aluminum alloy . the inside of it is very smooth , strongly resist wear and long-lived to use .


All the models of this series can be installed with magnet sensor switch .
Bore of cylinder mm
Ø12
Ø16
Ø20
Ø25
Ø32
Ø40
Ø50
Ø63
Ø80
Ø100
Operation pressure range kg/c㎡
2-7
1.5-7
1-7
Operation speed range
-10~+60℃
Standard storke
Please refer to the Stroke specification
Fluid
Filtered air
Materieal of cylinder barrel
Aluminum alloy

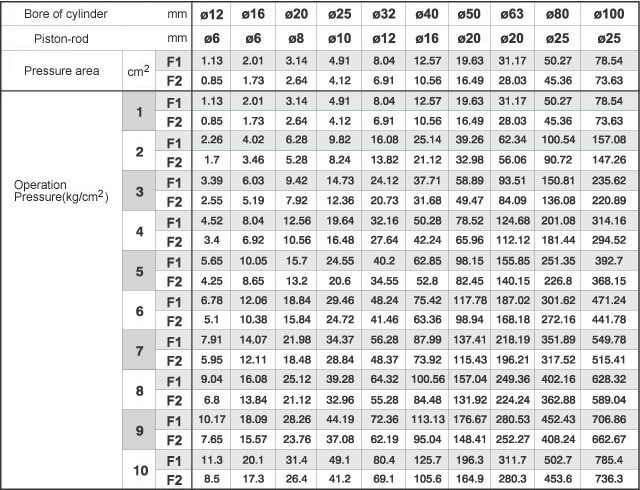

UNIT:kg
SD SW
